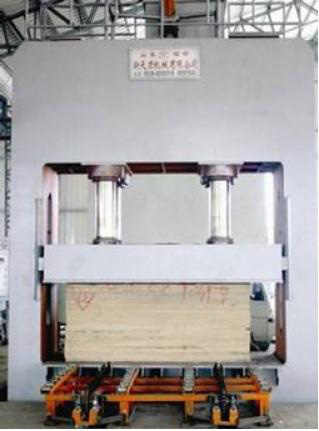

400T Cold Press
Model : BY814×8/4-IIz
Nominal Gross Pressure : 4000 Kn
Direction of Feeding Plate : Horizontal
Opening : 1600 mm
Dimension of Workingbench : 2700 × 1380 mm
Diameter of Cyclinder : Ø320 mm (Wuxi)
Number of Cyclinder : 2 Pcs
Side Helpful of Cyclinder : Ø60 mm × 2
Pressuziration : ≤ 25 Mpa
Stroke of Cyclinder : 1000 mm
Position of Cyclinder : UPSIDE
Pressure of Unit Plate Blank : 12 Kgf/〖cm〗^2
Dimensions of the Board : 2560 × 1280 mm
Allowed Pressure : ≤ 25 Mpa
Net Weight : 17000 Kg
Control Method : Automatic Pumping Station
Thickness of Upper and Lower Crossbeams : 900 mm
Thickness of Steel Plate : 35 mm
Thickness of Active Crossbeam : 400 mm
Thickness of Steel Plate : 20 mm
Chain and Roller Transports Device (Choose by buyer) : YES
